Ball Bearing Swing Gate Hinge Fits Inside 50x50mm Steel Tube frame 50mm SHS - Garage Gate Remotes Pty Ltd

Ball Bearing Swing Gate Hinge Fits Inside 50x50mm Steel Tube frame 50mm SHS

Ball Bearing Swing Gate Hinge Fits Inside 50x50mm Steel Tube frame 50mm SHS
  • Click to enlarge
  • Click to enlarge
  • Click to enlarge

$110.00


Product Information
Specification

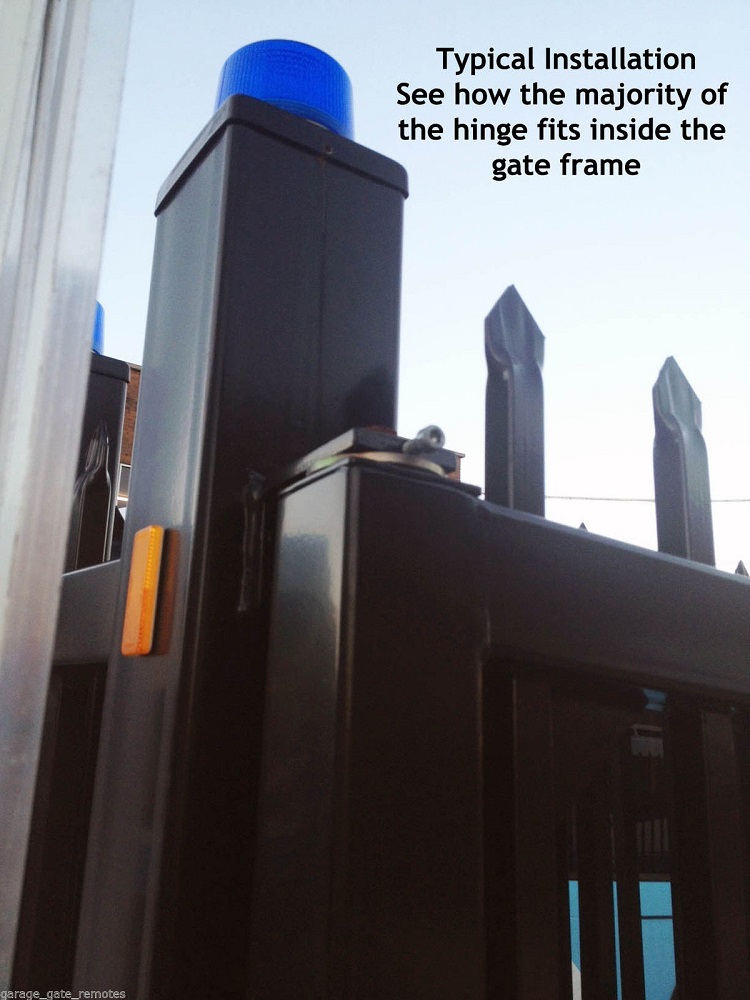

  • The benefit of these hinges is that the bearing fits inside your 50x50x2mm SHS frame.
  • You don't need to leave a huge gap under your gate or have the hinges higher than your post.

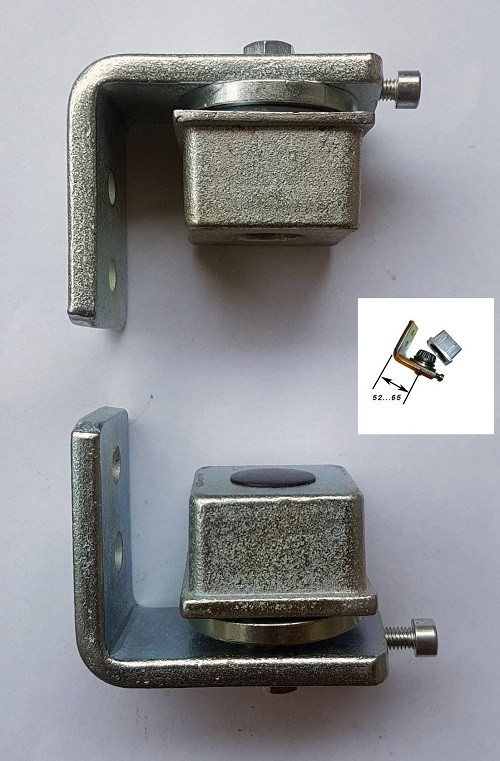

  • Angle bracket made from 8mm thick rust resistant zinc/gal plated steel
  • Angle Bracket 80mm(bearing side) x 70mm (post side) x 40mm wide
  • Top and bottom hinge for one swing gate leaf
  • If you have a double gate buy 2 of these.
  • No need to weld this to your gate
  • Bearings fit inside 50x50 tube gate frame with wall a thickness of 2mm
  • Weld or bolt Angle mounting bracket to steel post or bolt on to wood or aluminum post
  • Adjustable positions with locking nut
  • Sells for hundreds of dollars in stores
  • Inspection welcome prior to buying
  • Don't forget to grease the bearings during installation!!

If buying a few hinges contact us for a cheaper courier postage rate

Product Code50x50hinge
ConditionNew
Weight1.6Kg
